01. Summary


NJ-Moves is a software solution that provides project and funding application management for all Department of Transportation (DOT) projects across New Jersey. This includes multimillion dollar construction projects such as bridges, tunnels, and any roadways throughout the state. Our goal was to build a platform that is able to handle complex workflows and encourage collaboration between the different departments in order for these projects to be funded. If this project proves to be a success, NJ-Moves will be adopted into the other branches of the company that handles funding projects related to Water and Energy through the Department of Environmental Protection and Department of Energy.

02. Challenge

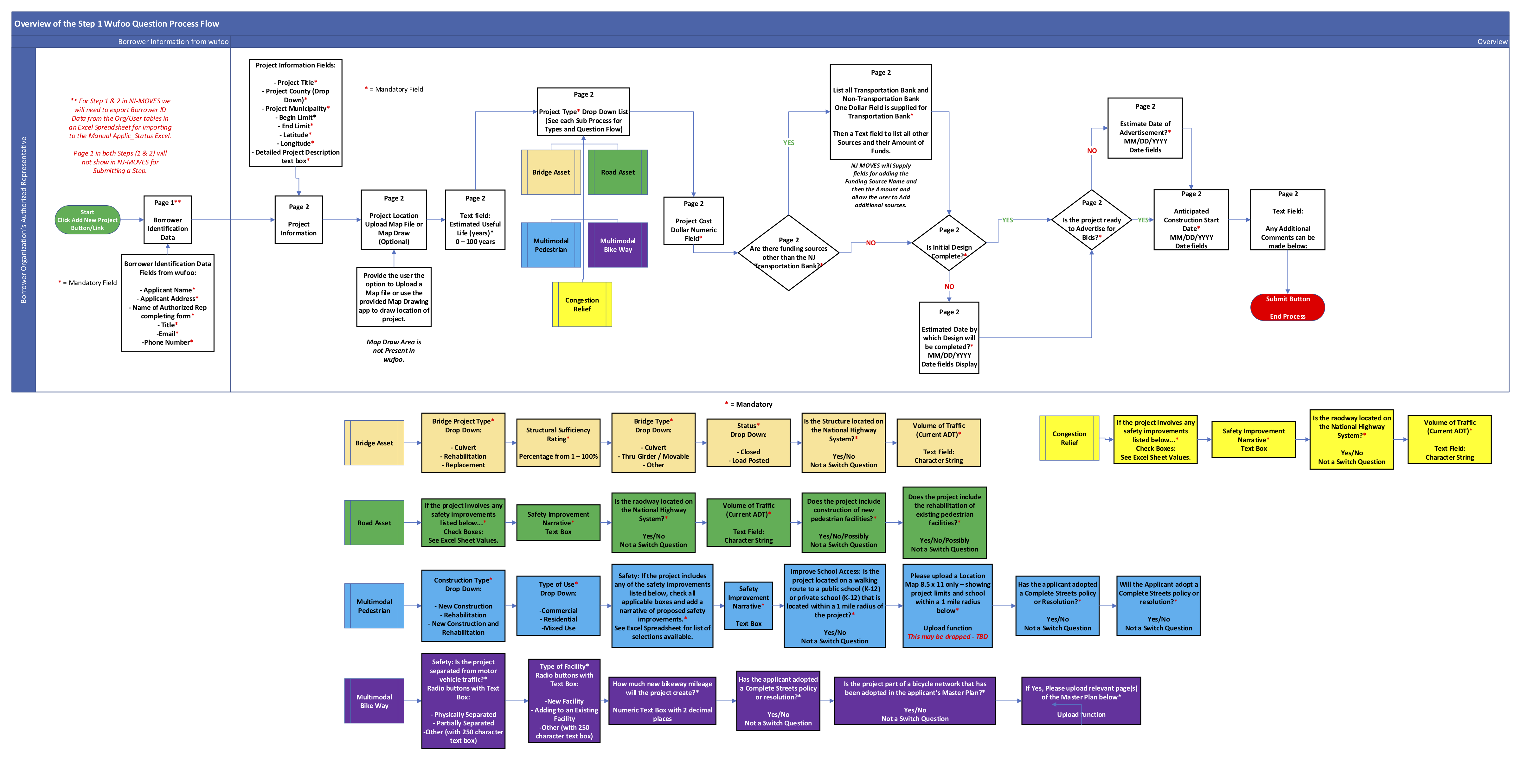

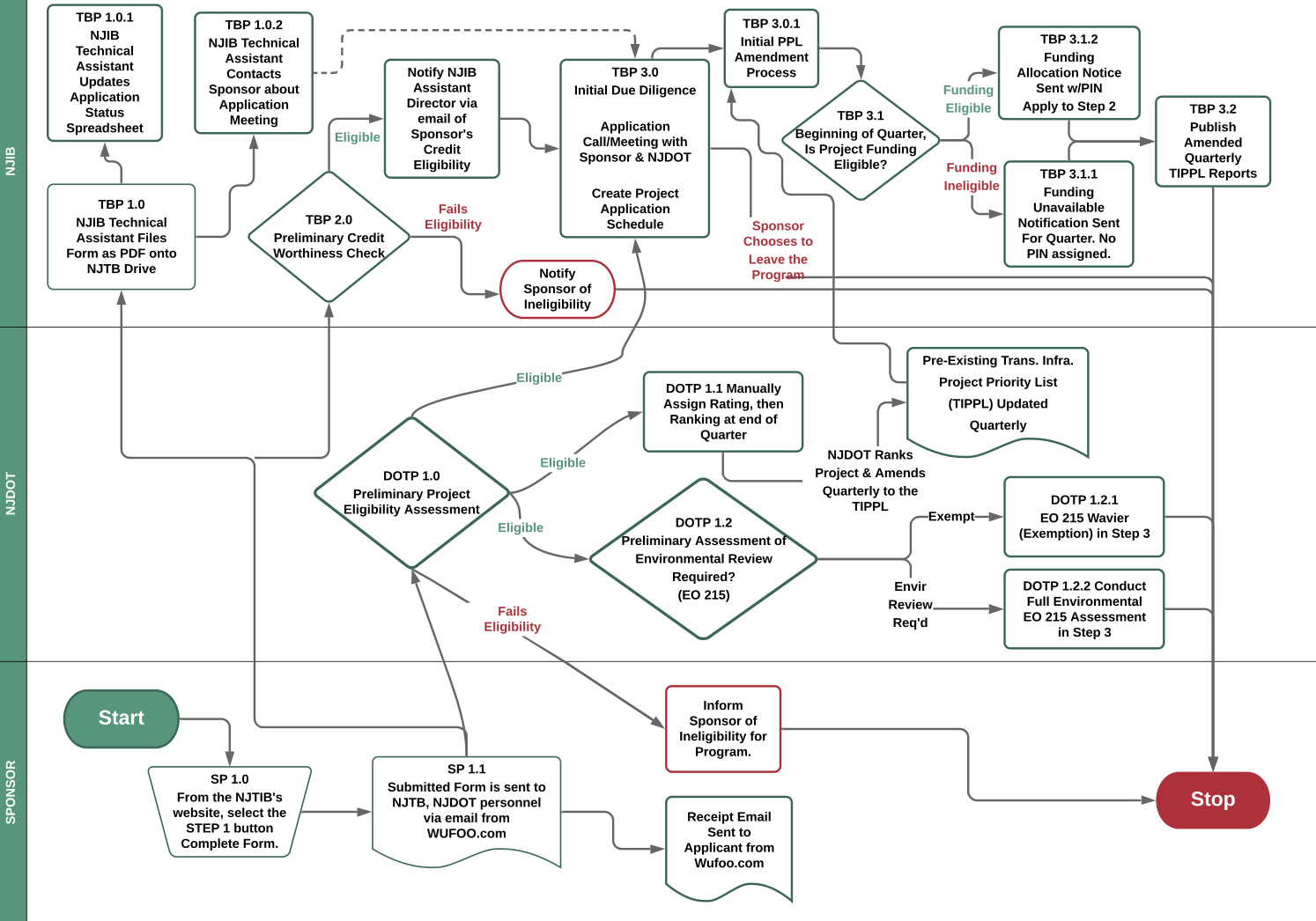

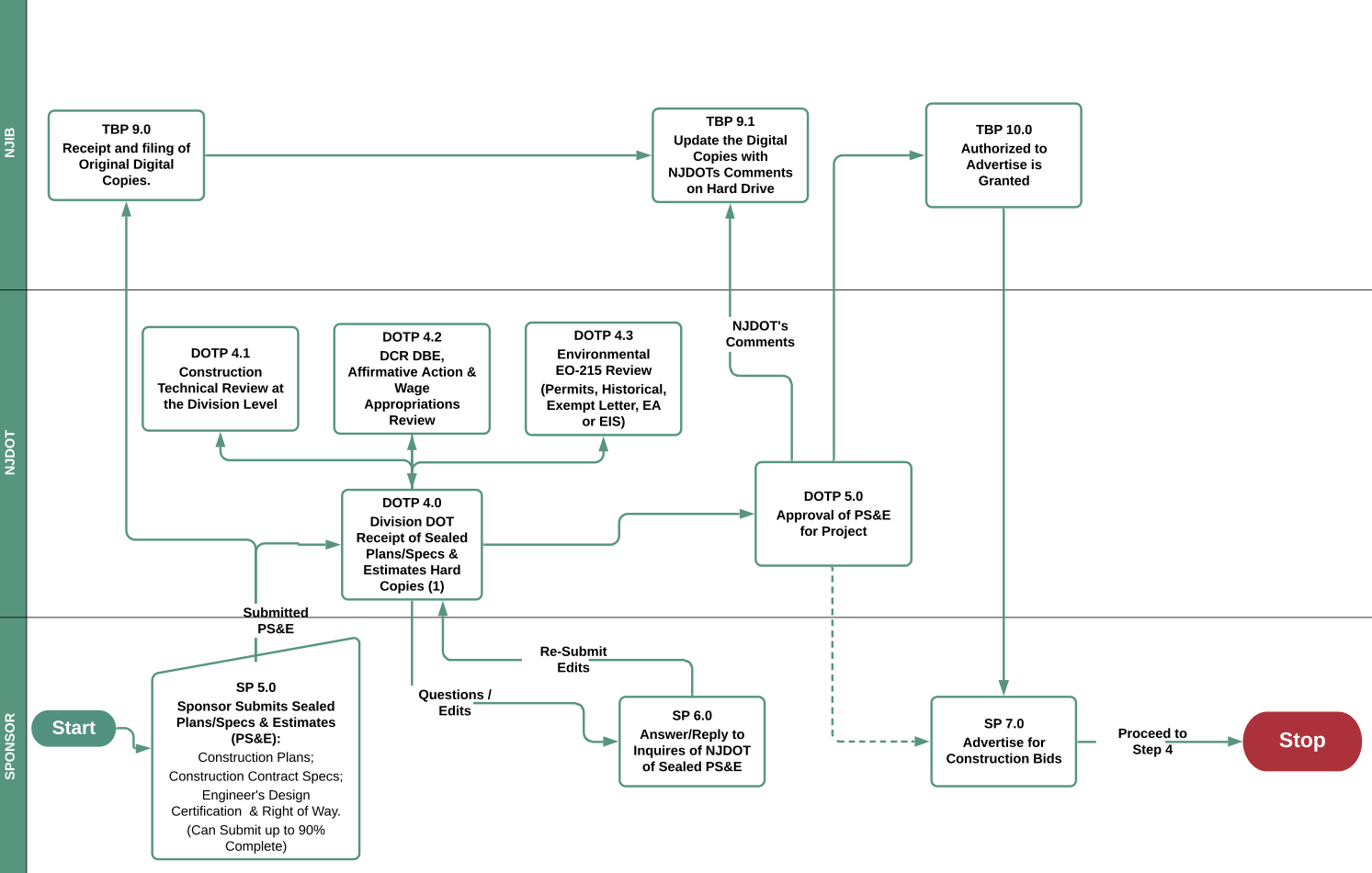

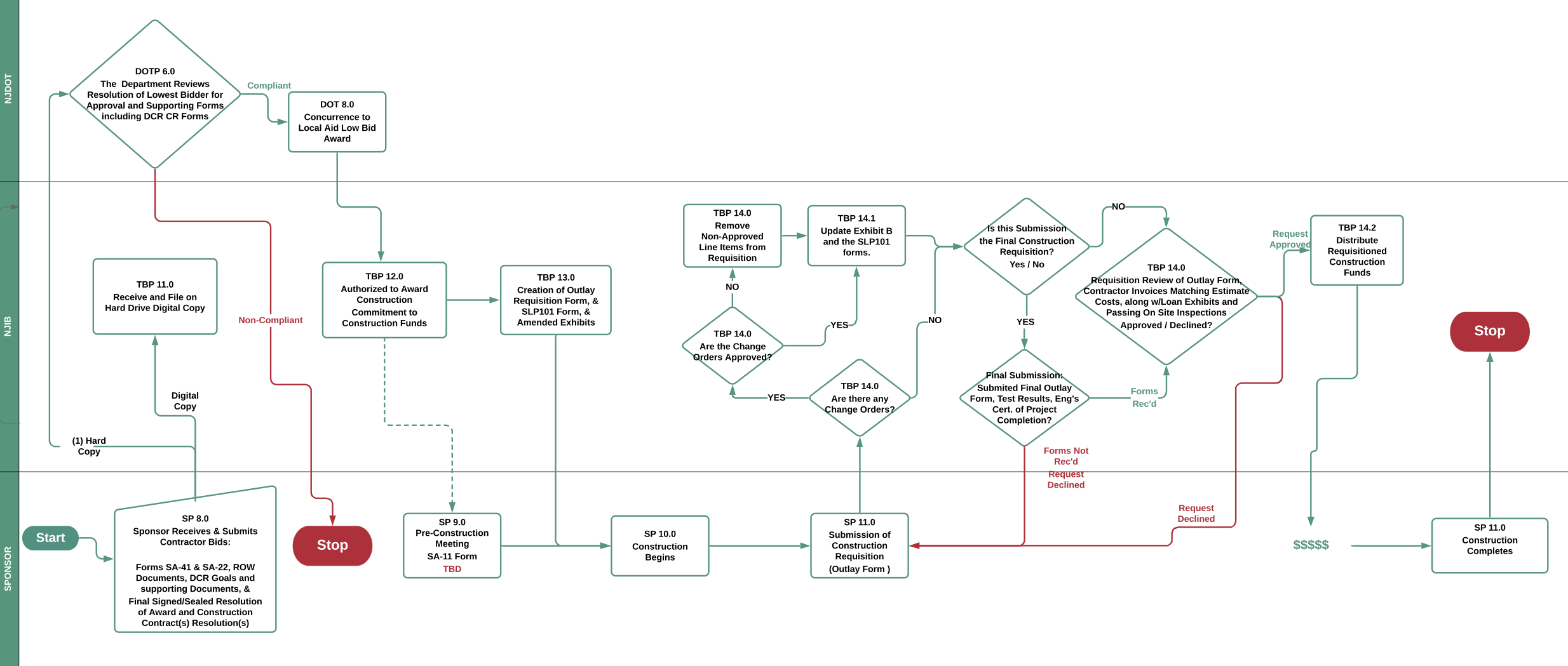

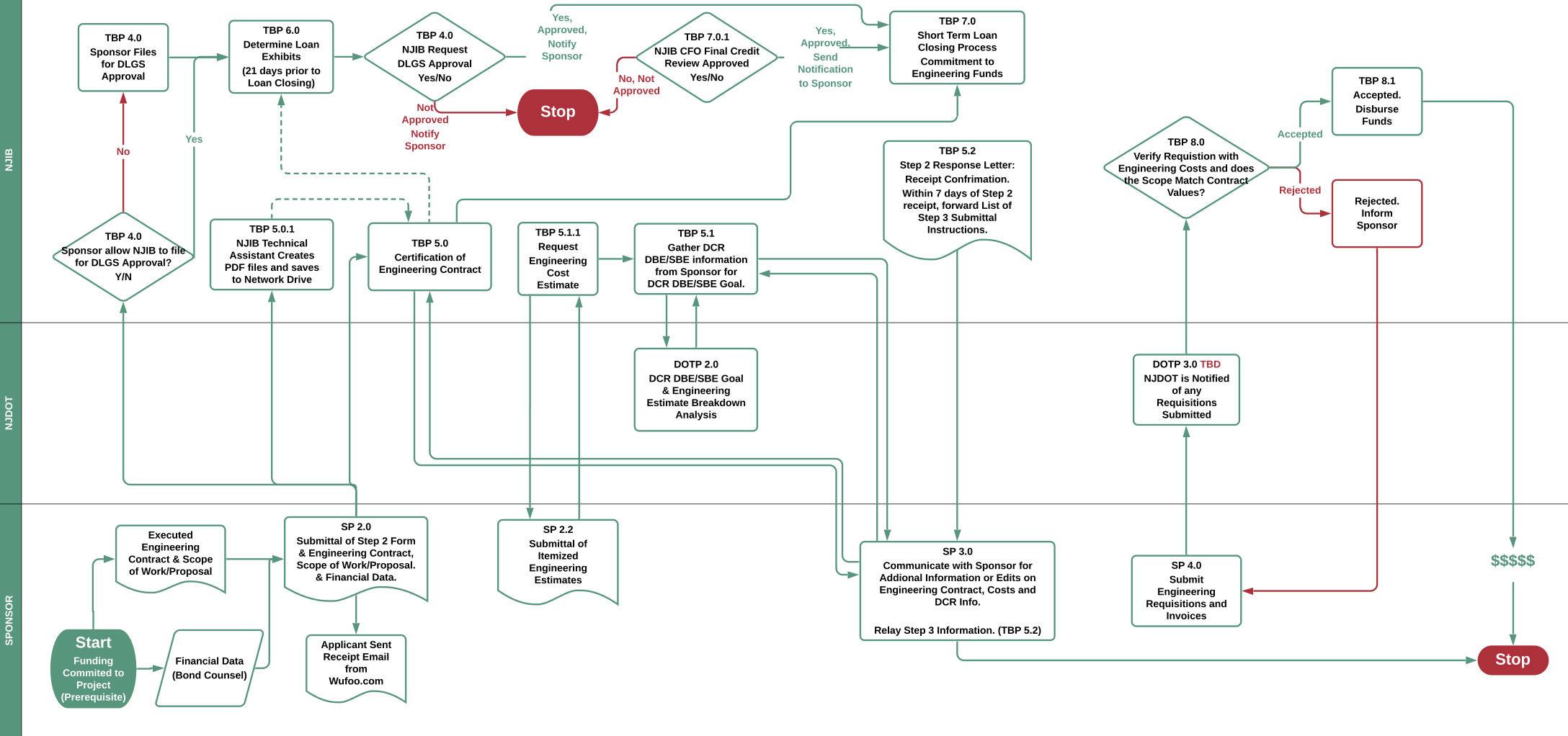

The challenge throughout the development of this platform was that the workflow required to complete a project within the system is very complex. Because it is a government run organization the process is set in stone and we cannot optimize this workflow to better suit the program. Below is an example of one of the steps I mapped out that is needed to be completed within a project:




There are 3 acting parties within a governmental project:

  • The Township which the project is occurring (We call these "Sponsors")
  • The Department of Transportation
  • The New Jersey Infrastructure Bank

In order for a project to receive funding throughout its lifespan all of the required 4 steps must be completed in its entirety. Each step requires about 3-5 sub steps from each acting party. That is a total of about 12 sub-steps of required document uploads, form submittals or approvals in order to complete 1 of the 4 steps. To add to this, this process of completing steps is not linear and often times a sub step can be completed in a number of different orders.

03. Solution

Let's Build!

We could not do much about optimizing this process due to regulations set by the state government, however, we wanted to create a central platform that would handle these steps and make it as easy as possible to fund and collaborate on New Jersey's next bridge tunnel or roadway construction.

The Team

Our best solution to handling a repetative and complicated process was througha software application. For this, we needed to build a strong team diverse in skiils to make sure that the project is driven to success. The team we dedicated to this project was as follows:

  • 6 Developers
  • 1 Product Owner
  • 1 Product Manager
  • 1 Ux Designer ( Me )

04. The Design Process

DISCOVERY / USER RESEARCH

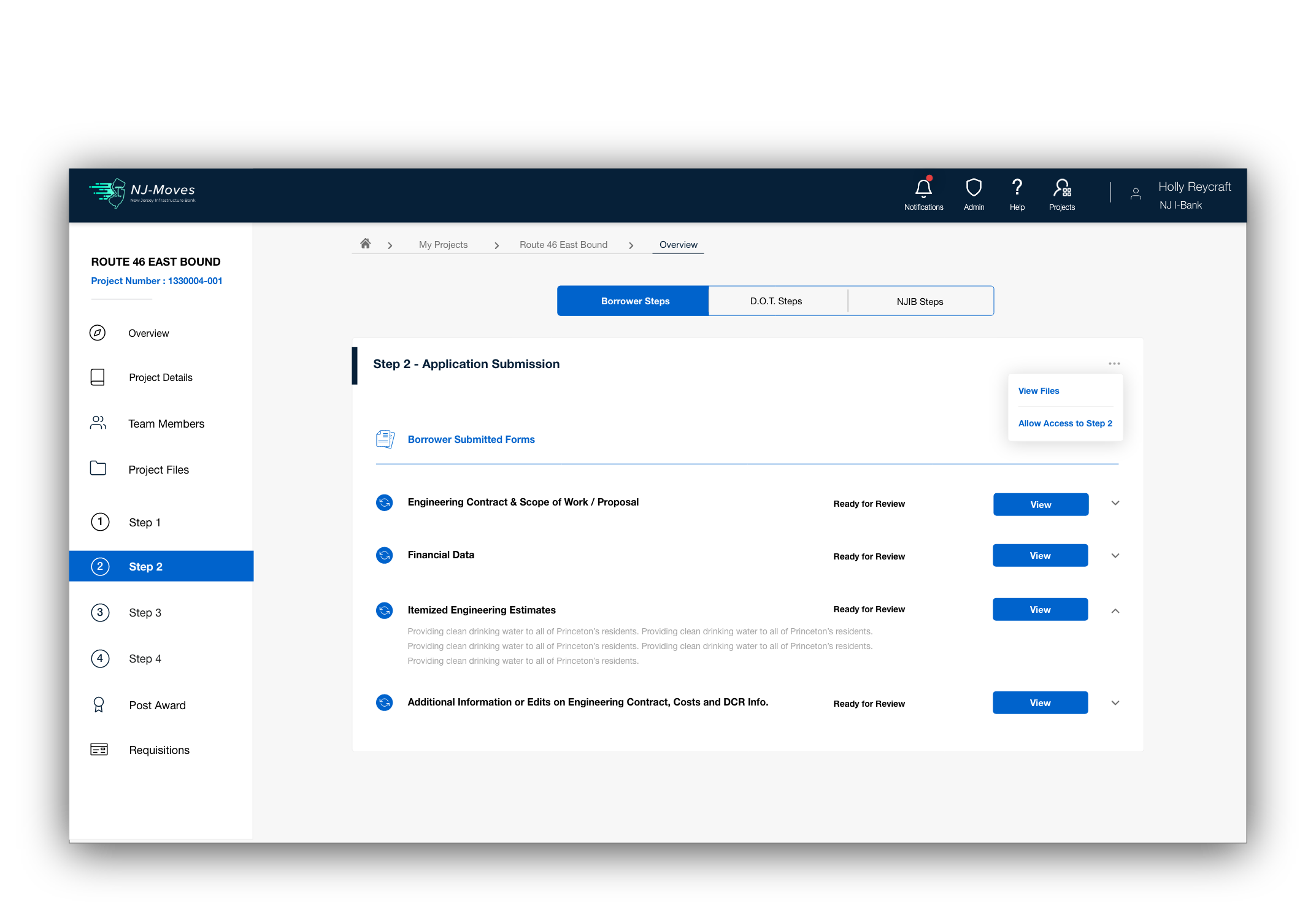

First we needed to map the process required for a Sponsor to complete in order to complete their journey through our platform. Below is a User Journey of the different steps they need to complete throughout the project.

Step 1

Step 2

Step 3

Step 4


USER INTERVIEWS

First we needed to map the process required for a Sponsor to complete in order to complete their journey through our platform. Below is a User Journey of the different steps they need to complete throughout the project.

INFORMATION ARCHITECTURE

The next step in the design process was to organize everything and give a structure to the app. This is known as Information Architecture. I started by defining the minimum requirements or deliverables for the app by drafting the User Stories.

User Stories is an exercise to put the users' needs and goals and competitors' features into different user type buckets. In general, there are three user types: new user, returning user and all users. The information collected from surveys, interviews and competitive analysis has to be grouped into these user types accordingly. That lays the foundation for the next step i.e. wireframes and defines my MVP goals in a clear way.

26. Checklist
USER TYPE USER STORY REASON
New User
  • Be added into an organization to be able to view and edit projects.
  • Allow user to view the projects they’re assigned to and the overview of which state the project is at.
  • Users will not have access to projects outside of their organization's and should be restricted to only seeing their own organization’s projects.Be added into an organization to be able to view and edit projects.
  • Users should be able to see their own projects they've been working without having to search through all projects within the system.
Returning User
  • Allow users to Add users into the system and assign roles.
  • Check notifications to see if a project has progressed through the workflow.
  • Quickly view what state the project is in and if the user is required to fill out any additional steps.
  • This system will be maintained by both NJIB and DOT, we will both have the roles as Organization manager who is able to manage users within the system.organization to be able to view and edit projects.
  • As a user I want to be notified when I need to complete a task ignorer to stay up to date and constantly progressing my projects.
  • Users need to quickly tell which of the projects they’re working on and if the project has a task that is needed to be completed by them, the DOT, or the NJIB.
All Users
  • Digitalize the Process of Tracking and completing a New Jersey Infrastructure Project.
  • Have a single space to upload forms and data. (Steps 1 - 4)
  • Allow Sponsors to create a project in step 1 and continue with steps 2 - 4 once permissions is given by NJIB.
  • Review / Onboard Sponsor Files
  • Currently this process is managed through paper copies and handing these off physically in person or over email. The program should manage the workflow in a webbed system that does not require any physical copies.
  • The program should be cloud based so that users can access the system from anywhere on only device whether they’re out in the field or in the office.
  • Users should not be able to progress through the steps freely taking out loans as they want. Permission should be granted at each level of the program in order to progress with funding a project.
  • Sponsors currently following the steps through paper should be able to pick up their progress from within the program. NJIB Reviewers should be able to review all documents and submitted forms from within the system.

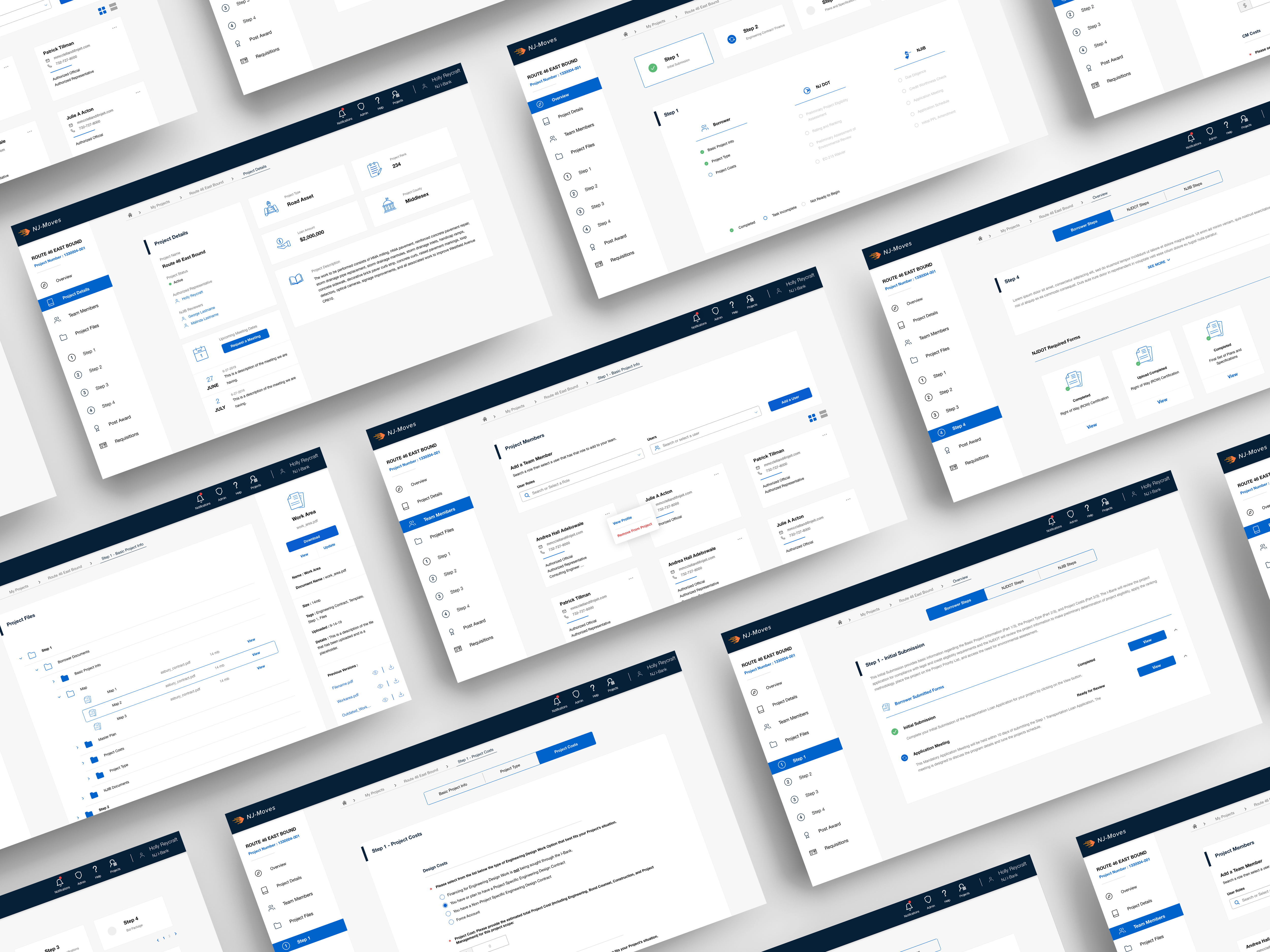

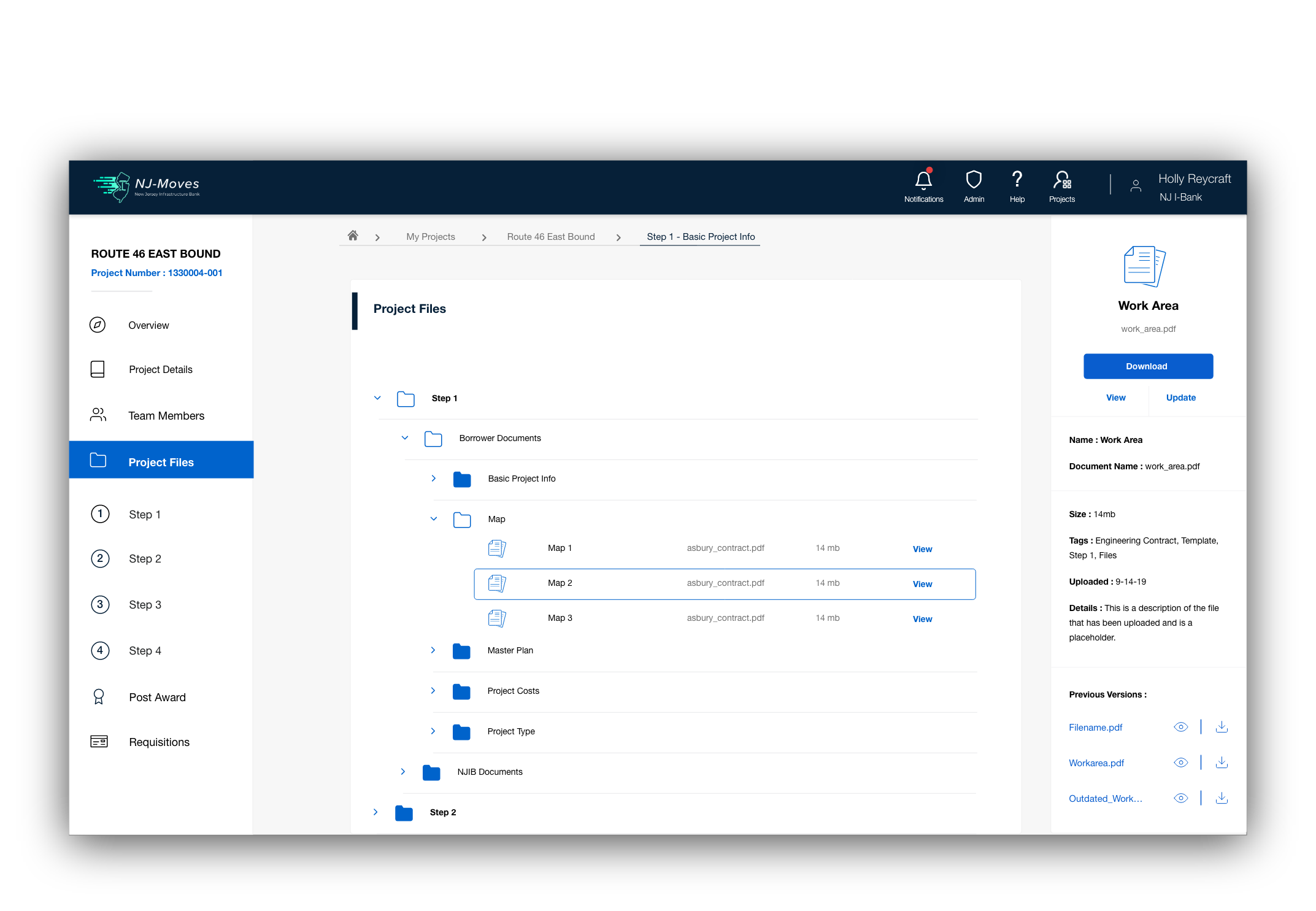

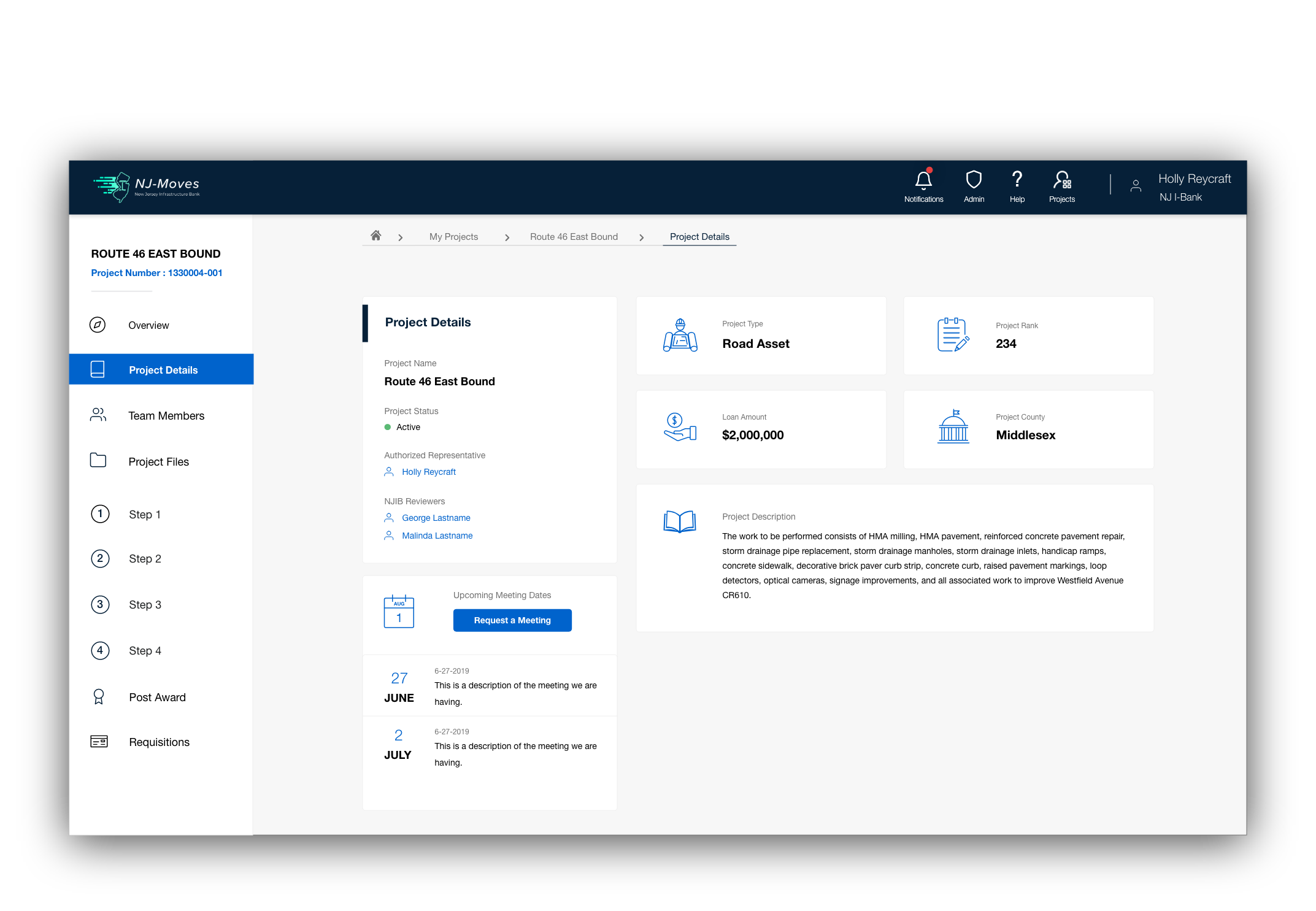

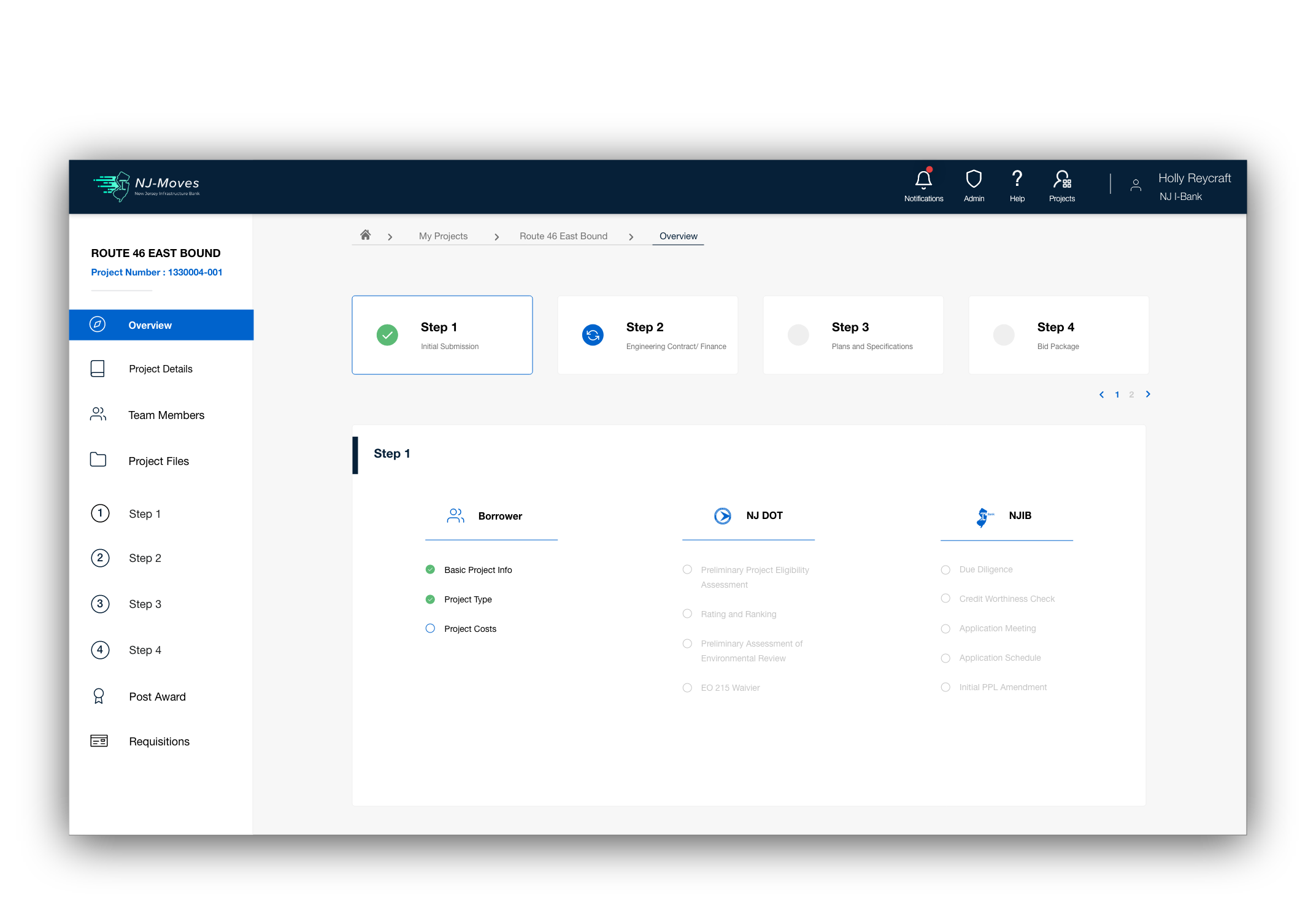

WIREFRAMES & HI-FI MOCKUPS

Wireframe sketching is the first step where you translate written matter into its visual layout. They are low fidelity in nature and does not contain an actual copy. They help you to decide the visual layout by placing appropriate UI elements and sizing them accordingly.

View Prototype

05. Conclusion

This is by far the one of the most UX/UI intensive projects I have undertaken. I have spent 6 months working on this project starting from brainstorming to deploying the interactive prototype and finally working with developers to make sure the program is made to its fullest potential.

I have a lot to say regarding this project as I have left no stones unturned when it came to putting in the best of my efforts at each stage of this project. That said, mistakes are made even when you go all in.

Some tips to avoid repeating them in the future:

  • Make all the wireframes of the product/service in the start instead of doing it in stages
  • Stick to the MVP goals throughout the project phase; adding extra features is always tempting but this can burn your time and energy.
  • Take into consideration different screen sizes and design accordingly.
  • Avoid implementing interactive states wherever possible as this results in double-clicks and may confuse the user about the integrity of the prototype.

Looking at the service as a whole, I am confident that the solutions I came up with, will definitely drive more infrasturtue projects through till completion throughout New Jersey.
